ARCA CABINET SIZES

Arca Colors 3.jpg

57" 8-Drawer Double Bank

Square Capacity: 5,931 sq.-in.

Cubic Capacity: 32,906 cu-in.

Dimensions: 57"W x 25.2"D x 44.7"H

Unit Weight: 485 lbs.

79" 13-Drawer Triple Bank

Square Capacity: 8,065 sq.-in.

Cubic Capacity: 45,651 cu-in.

Dimensions: 79"W x 25.2"D x 44.7"H

Unit Weight: 745 lbs.

ACCESSORIES

ARCA 57 Canopy.jpg

57" CANOPY

Capacity: 35,640 cu.-in.

Dimensions: 57"W x 25"D x 28"H

Unit Weight: 221 lbs.

ARCA 79 Canopy.jpg

79" CANOPY

Capacity: 49,846 cu.-in.

Dimensions: 79"W x 25"D x 28"H

Unit Weight: 271 lbs.

ARCA Locker.jpg

SIDE LOCKER

Square Capacity: - sq.-in.

Cubic Capacity: - cu.-in.

Dimensions: 28"W x 25"D x 72"H

Unit Weight: - lbs.

CONSTRUCTION

DUAL ROLL CAGE

  • Two Cages instead of the 3 in Platinum™

  • No “Double Wall” used in ARCA®

  • Slide piercings are direct into Roll Cage

  • Roll Cage construction helps keep the box square from the beginning of the manufacturing process, and creates the most durable box possible

  • We are the only Manufacturer that uses Roll Cage Construction

ACCURIDE® SLIDES

(230lb. RATING)

  • Top of the line slides sourced in North America

  • Integrated TLC+ into the slides (Patented by Cornwell)

  • Double slides on wide bank drawers only

  • More ball bearings

  • Operates smoothly under a load and reduces drawer droop when the drawer is at full extension. Latching works well even if the box is on an uneven floor

LOCK MECHANISM

  • Mounted to the Roll Cage like Platinum™.
    Not Mounted to the back wall like Pro Series®

  • Roll Cage mounted locking system is not influenced by warping or oil canning of the back wall. Drawers lock consistently.

  • Key lock can be upgraded to an Electronic Lock in the field

ARCA Swatches.jpg

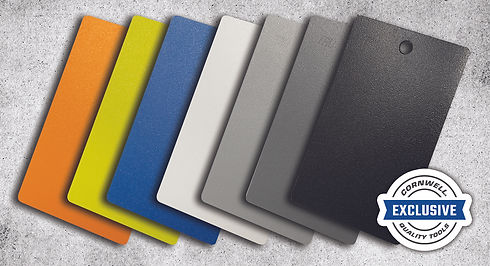

EXCLUSIVE PAINT FORMULATIONS

  • Textured Mid-Gloss Finish

  • Unique formulation that contains metal flake and interference pigments not seen in our industry before

  • Easy to clean up - stands up to dirt, grease and finger prints

6” X 2” CASTERS

  • Glass reinforced casters

  • More durable, lasts longer, and they are better for the environment

ARCA Caster_edited.jpg

ARCA vs PLATINUM

Arca Box.png
Platinum Box.png

56” or 84”

30"

47"

Single-Slide: 260 lbs.

Pacific Rim

6” x 2” spring-loaded

Powder Coated Matte Black Steel

Triple Roll Cage

Electronic

57” or 79”

25"

44"

Single-Slide: 230 lbs.

Accuride®, North America

6” x 2”

Stamped Rubber Mat

Dual Roll Cage

Key
(can upgrade to Electronic)

WIDTHS

DEPTH

HEIGHT

SLIDE CAPACITY

SLIDES

CASTERS

WORK SURFACE


ROLL CAGE
CONSTRUCTION


LOCK STYLE

A BOX THAT DOES IT BETTER

We offer more cubic inches per dollar of tool storage than our competition.
